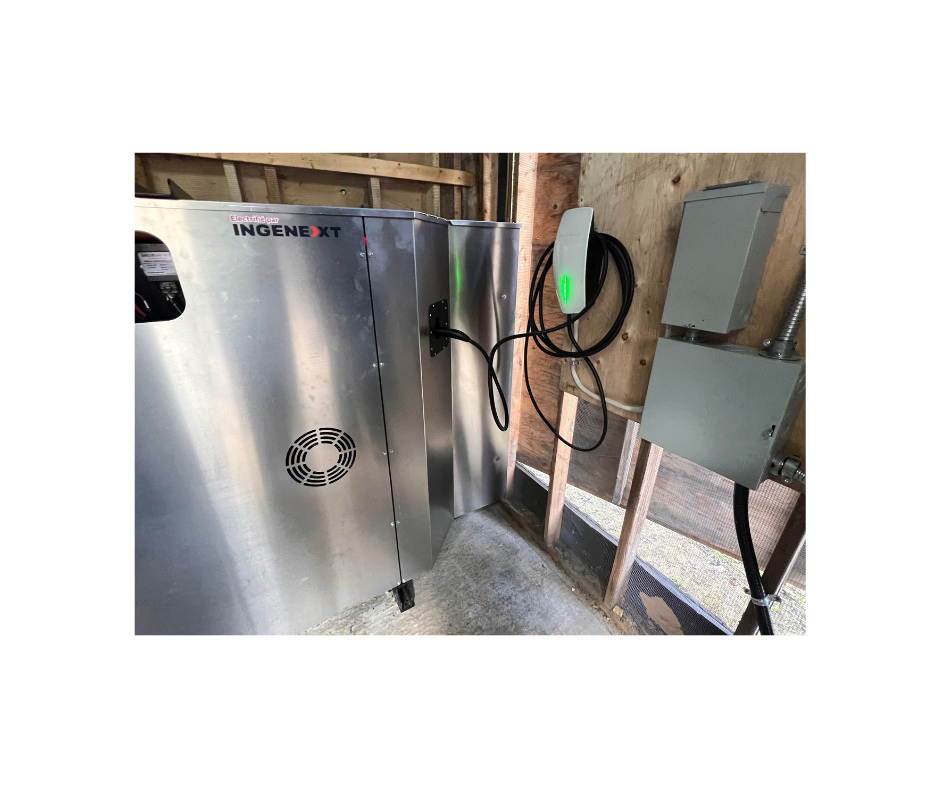

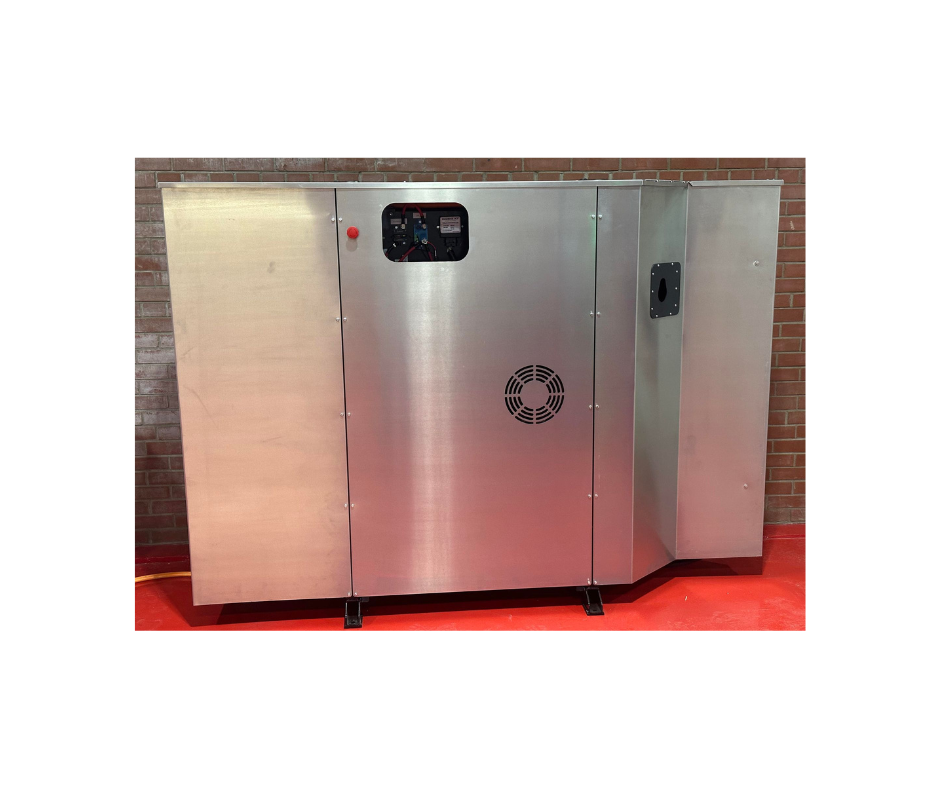

THE CYBER-BATTERY

An autonomous unit to meet your off-grid needs

Reduce your dependence on fossil fuels

Designed using one or two Tesla Model 3 batteries, the Cyber-Batterie reduces the need for gasoline-powered generators and lowers the demand on the grid.

It's the perfect system for off-grid use, and for pairing with solar panels or a generator.

The unit can also act as an emergency power system in the event of a power failure.

With its 12v battery and intelligent controller, the system is completely autonomous and regulates its own temperature, summer and winter alike.

Performance and Reliability

Reliable and safe, the Cyber-Battery requires little or no maintenance. It also enables the integration of several off-grid inverters. Easy to use, just flip a switch to turn the system on and off.

The unit can be customized to suit your needs. Plus, with the data acquisition system installed in the unit, we can perform remote updates and provide you with valuable data.

SPÉCIFICATIONS



Option 1

Option 2

Energy

70 kWh

140 kWh

Pack charging

11.5 kW of AC charging power (48A @ 240VAC) from the grid or a generator

23 kW of AC charging power (2x 48A @ 240VAC) from the grid or a generator

Voltage span

300 to 400 VDC

300 to 400 VDC

Continuous power output

50 kW

100 kW

Peak power output

250 kW

500 kW

Solar panel

Compatible

Compatible

Operating temperature

-30 to 40 °C

-30 to 40 °C

Dimension

88 x 64 x 26 inches

88 x 64 x 52 inches

Output inverter

  1. 12 to 100 kW AC 120/240VAC
  2.  30 to 50 kW AC 480/600VAC 3 phases

  1. 12 to 100 kW AC 120/240VAC
  2. 30 to 50 kW AC 480/600VAC 3 phases
